2000 Series ETDRS Distance Charts made for 6.5ft / 2m testing distance. Optotypes are in proportionally spaced (logMAR) lines; line sizes range from 6.5/65 to 6.5/3.2 (2/20 to 2/1) equivalent. The other equivalents featured on this chart are letter size, 20 foot, 6 meter, decimal, and LogMAR. These charts are part of the revised original ETDRS series based on more recent research. On the revised versions of the original ETDRS series charts, each line is equally difficult.

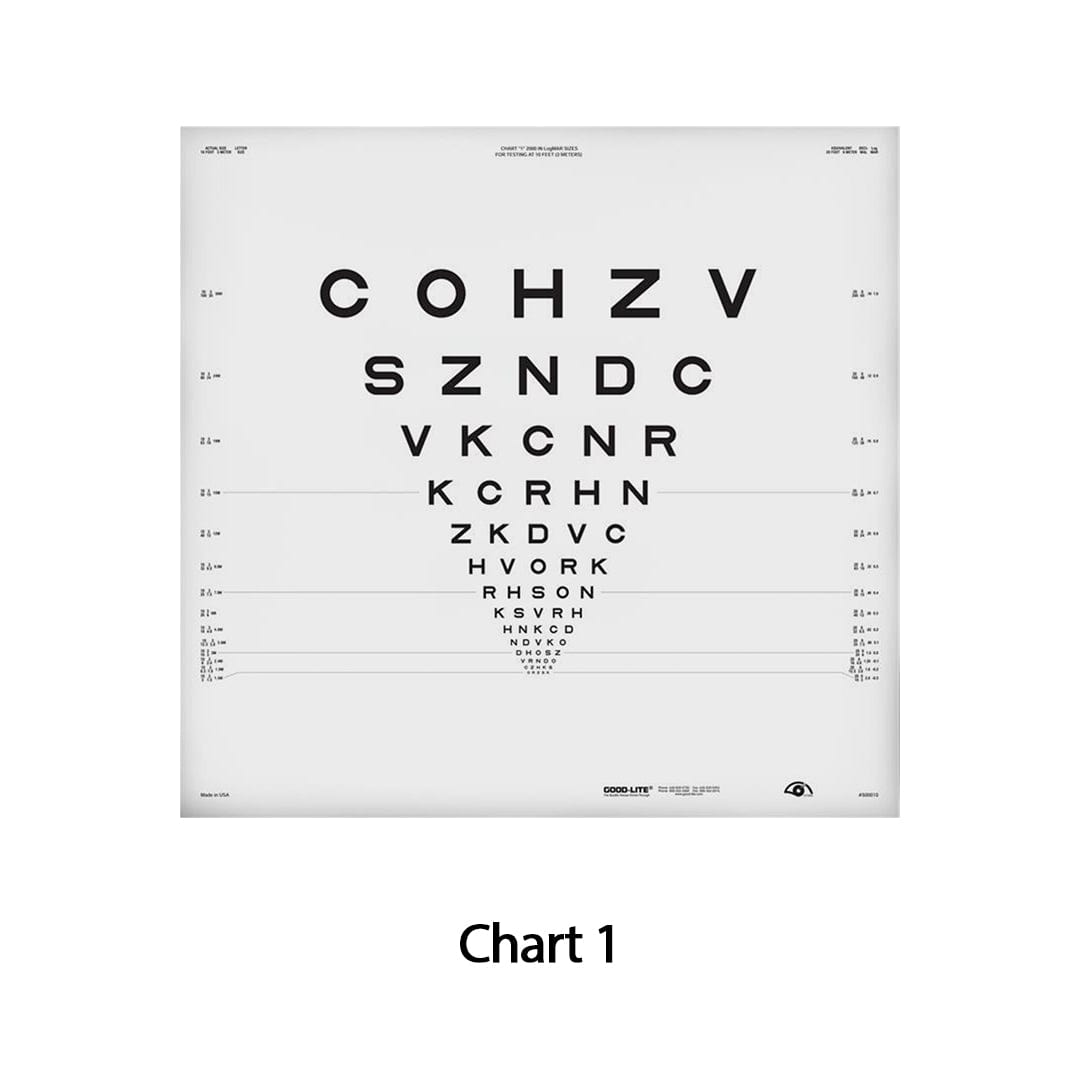

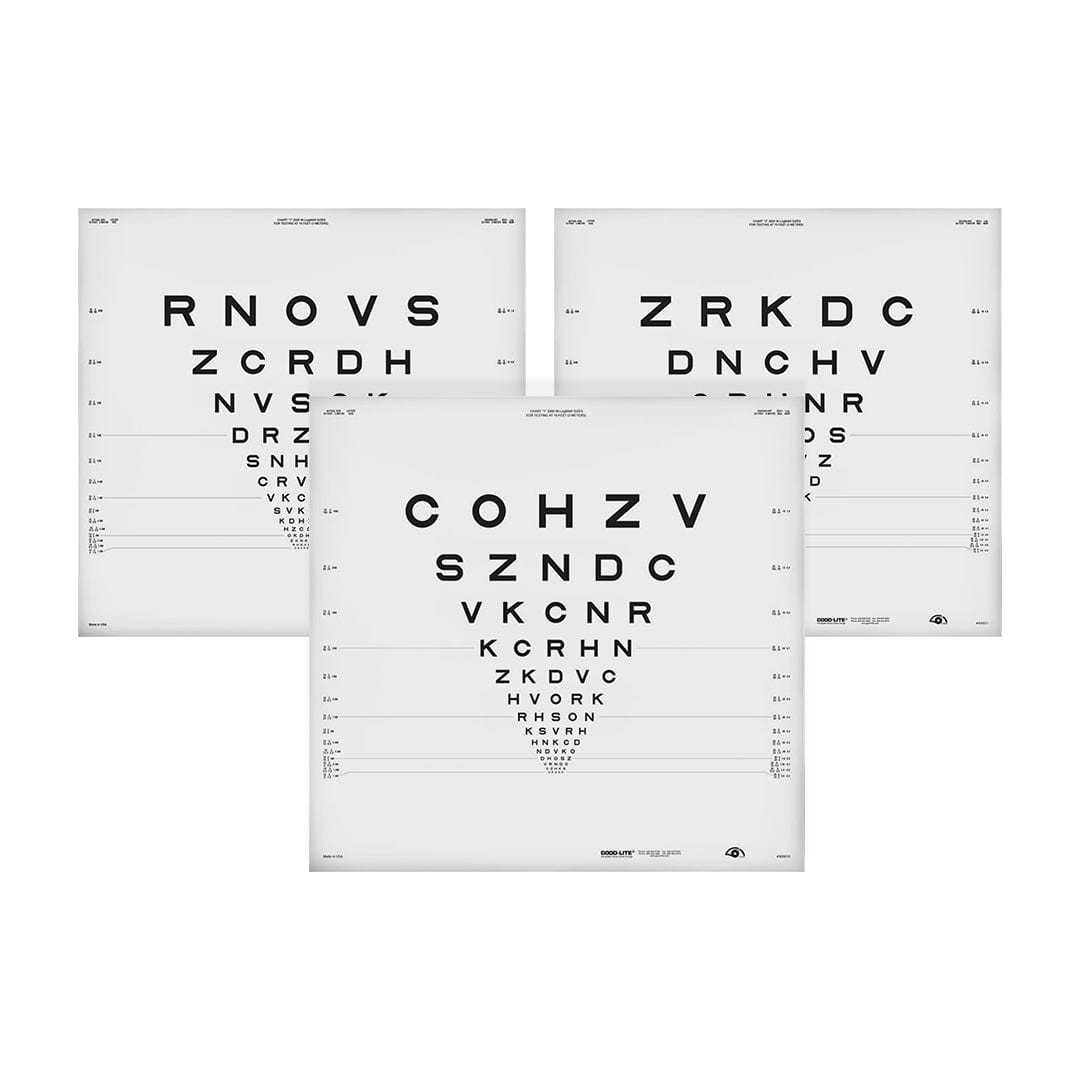

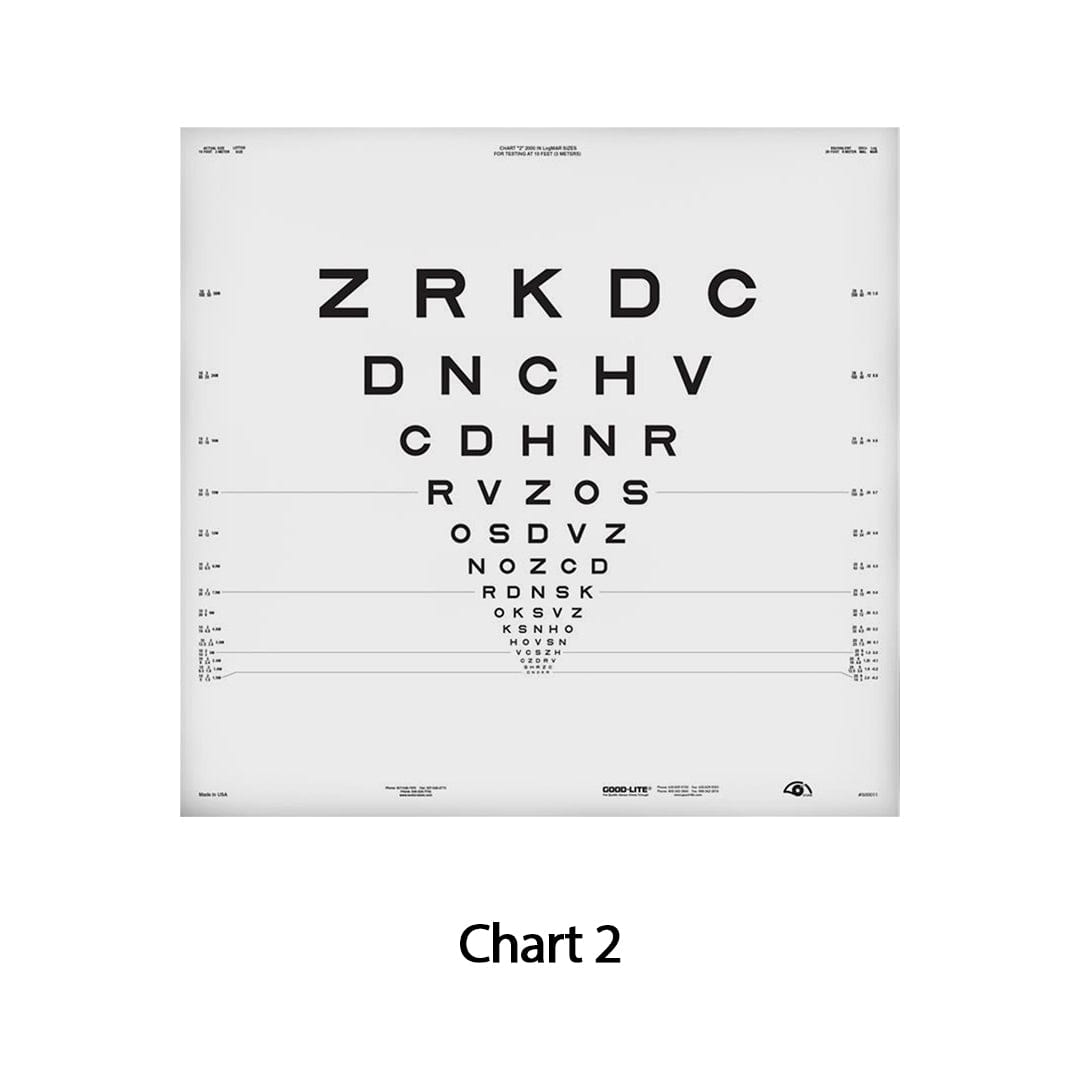

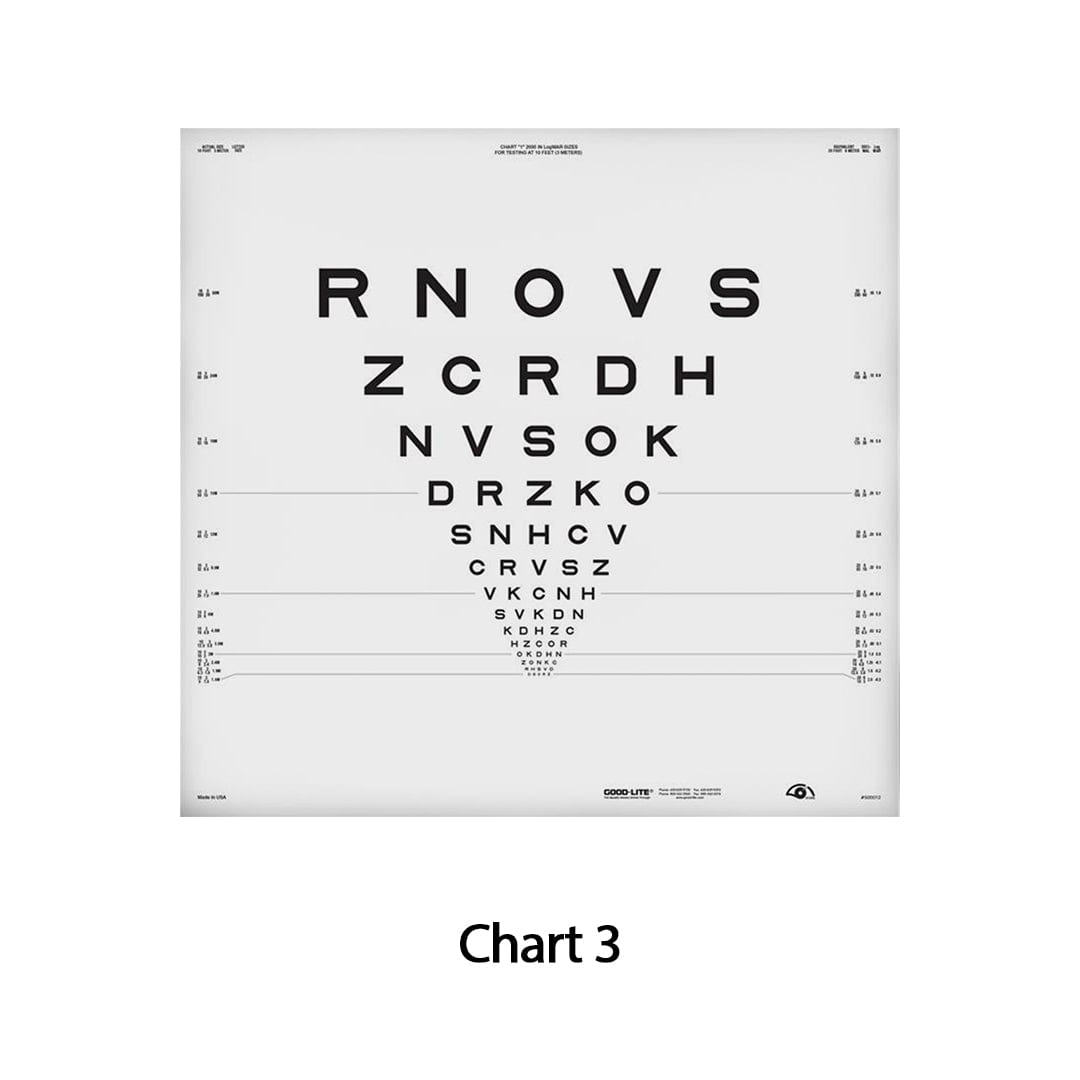

Charts available are ETDRS Chart 1, Chart 2, and Chart 3. All charts are screen printed on styrene plastic and clear coated for long-lasting durability.

ESV3000™ ETDRS Clinical Trial Standardized Viewer and ESC2000™ Illuminated ETDRS Clinical Trial Cabinet compatible.

ESV3000™ ETDRS Clinical Trial Standardized Viewer and ESC2000™ Illuminated ETDRS Clinical Trial Cabinet compatible.

Additional Resources

What is ETDRS?

Specifications

• Dimensions: Height 24.5" x Width 25.5" (62 cm x 65 cm)
• Product type: Illuminated Charts
• Chart type: Illuminated Chart
• Test type: Distance Vision
• Testing Distance: 6.5ft / 2m
• Chart series: ETDRS | ESC2000™ | ESV3000™
• Chart format: ETDRS | logMAR
• Chart use type: Illuminated cabinet chart
• Optotype: Sloan
• Weight: 1 kg (2.2 lb)

Available Online Resources

• Guide - ETDRS Testing Reference Guide
• Technical Bulleting - ESV3000 and ESC2000 Distance Charts - Technical Bulletin
