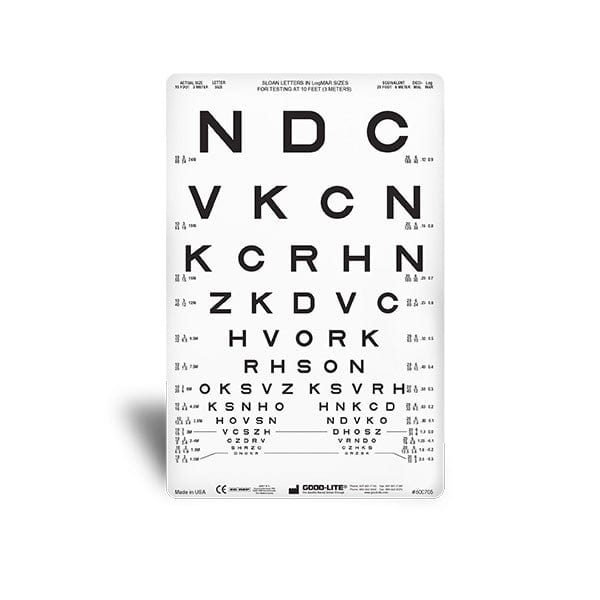

A Sloan Letter translucent distance eye chart with proportionally spaced lines; line sizes range from 10/80 to 10/5 (3/24 to 3/1.5) equivalent.

The other equivalents featured on this chart are letter size, 20 foot, 6 meter, decimal, and LogMAR.

This chart can either be wall mounted or used in an ESV1200™, ESV1500™, or a Model A+ illuminated cabinet.

Specifications

• Dimensions: 9" x 14" (22.9 cm x 35.6 cm)
• Product type: Illuminated Charts
• Chart type: Illuminated Chart
• Test type: Distance Vision
• Testing distance: 10 feet/3 meters
• Chart series: Quantum Series | ESV1200™ | ESV1500™
• Chart format: logMAR
• Chart use type: Illuminated cabinet chart
• Optotype: Sloan
• Certifications: CE
• Weight: 0.15 kg (0.3 lb)

Available Online Resources

• Guide - Proportionally Spaced logMAR Sloan Letters Chart - User Guide
• Technical Bulleting - ESV1200™ and ESV1500™ Charts - Technical Bulletin
• Answer Key - 600711 & 600705 - Distance Vision Answer Key
